Medical Pump Brushless DC Electric Motor Shaft Run Out 0.025mm RoHS Approved

Name: Medical Pump Brushless DC Electric Motor Shaft Run Out 0025mm RoHS Approved
Brand: Retek
Price: 1 USD

Quality Medical Pump Brushless DC Electric Motor Shaft Run Out 0.025mm RoHS Approved for sale

Brand Name : Retek

Model Number : W80 Square Series

Certification : CCC,UL,RoHS, Reach, CSA

Place of Origin : China

MOQ : 1000pcs

Price : Negotiable

Payment Terms : T/T, Western Union

Supply Ability : 5000PCS/Month

Delivery Time : 14days

Packaging Details : 6PCS/Carton

Wind Type : Delta/ Star connection

Number of Poles/Phase : 4/3

Hall Effect Angle : 120°

Shaft Run Out : 0.025mm

Dielectric Strength : 500 VDC for one minute

Environmental conditions : -10-40℃

Magnent material : Bonded NdFeB

Insulation : B

Contact Now

80mm*80mm: W80 Square Shape Brushless DC motors for Medical Pump, Surgery Tools, Medical Stirrer, centrifugal Machine

Typical Application:

Big Fans, Mobility,cars, automatic doors, liquid dispense and rotary diaphragm pump drives, robotics and agricultural and light industrial applications.Medical Pump, Surgery Tools, Medical Stirrer, centrifugal Machine

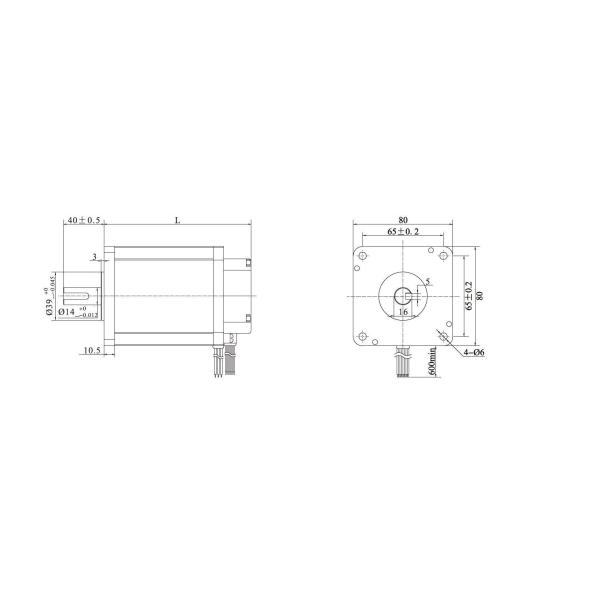

Drawing:

Medical Pump Brushless DC Electric Motor Shaft Run Out 0.025mm RoHS Approved

Performances:

Model			W8075	W8095	W80115
Voltage	V		24
No load speed	rpm	±10%	4200	4200	4200
Rated Power	W		78	157	235
Rated torque	Nm		0.25	0.5	0.75
Rated Speed	rpm	±10%	3000	3000	3000
Rated Current	A	±10%	5.2	10.5	15
Rated Power	W		79	157	236
Back-EMF constant	V/Krpm	±10%	9	9.2	9.5
Torque Constant	Nm/A	±10%	0.06	0.052	0.05
Resistance	ohm		0.5	0.43	0.35
Weight	Kg		1.6	2.2	3
Length	mm		75	95	115

For custom made, please feel free to contact us today.
